Explanation of SET STATISTICS PROFILE in SQL Server

 The SET STATISTICS PROFILE ON command in SQL Server. It outlines its purpose, usage, and the benefits it offers for query performance analysis and optimization. By enabling this feature, developers and DBAs can gain valuable insights into query execution plans, enabling them to identify bottlenecks and improve query efficiency. SET STATISTICS PROFILE ON  is a T-SQL command in SQL Server that, when enabled, provides detailed information about the execution of a query. Unlike SET SHOWPLAN_ALL ON or SET SHOWPLAN_TEXT ON, which only display the estimated execution plan, SET STATISTICS PROFILE ON returns both the query result and a detailed execution plan with runtime statistics. This includes information about the actual number of rows processed by each operation, making it a powerful tool for performance tuning

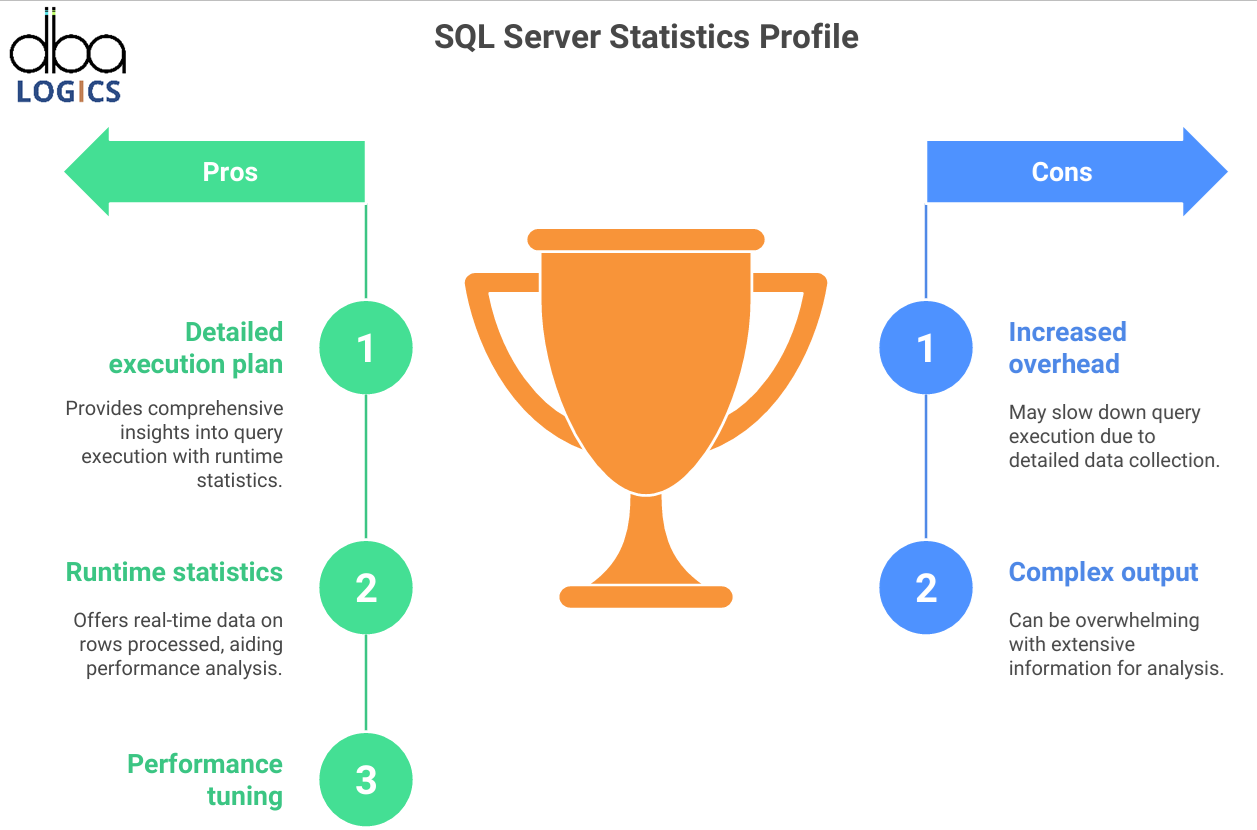

Key Benefits:

• Detailed Execution Information: Provides a step-by-step breakdown of how SQL Server executes the query.

• Runtime Statistics: Displays the actual number of rows processed by each operator in the execution plan.

• Performance Analysis: Helps identify performance bottlenecks, such as table scans, missing indexes, or inefficient joins.

• Estimated vs. Actual Comparison: Allows comparison of estimated and actual row counts, highlighting potential issues with statistics. How it Works: When SET STATISTICS PROFILE ON is enabled, SQL Server returns the query result as usual. However, it also appends an additional result set containing the execution plan details. This result set includes information about each operator in the plan, such as:

• Operator Type: The type of operation being performed (e.g., Table Scan, Index Seek, Nested Loops Join).

• Object: The table or index being accessed.

• Estimated Rows: The estimated number of rows that the operator will process.

• Actual Rows: The actual number of rows that the operator processed during execution.

• CPUTime: The amount of CPU time consumed by the operator.

• I/O Reads: The number of logical and physical reads performed by the operator. Example:

Here's a simple example demonstrating the use of SET STATISTICS PROFILE ON

Example:

When you execute this code, SQL Server will return two result sets:

1. The first result set will contain the FirstName and LastName of all employees in the HR department, as expected. 2. The second result set will contain the detailed execution plan information, including the operators used, the number of rows processed, and the CPU and I/O costs. Interpreting the Results: The output from SET STATISTICS PROFILE ON  can be quite verbose, but it provides valuable insights into query performance. Here are some key things to look for:

• Table Scans: Table scans are generally less efficient than index seeks, especially for large tables. If you see a table scan, consider adding an index to the table to improve performance.

• Missing Indexes: SQL Server may suggest missing indexes in the execution plan. These suggestions can help you identify opportunities to improve query performance.

• Inefficient Joins: Nested loops joins can be inefficient for large tables. Consider using hash joins or merge joins instead.

• High CPU or I/O Costs: Operators with high CPU or I/O costs are potential bottlenecks. Investigate these operators to see if you can optimize them.

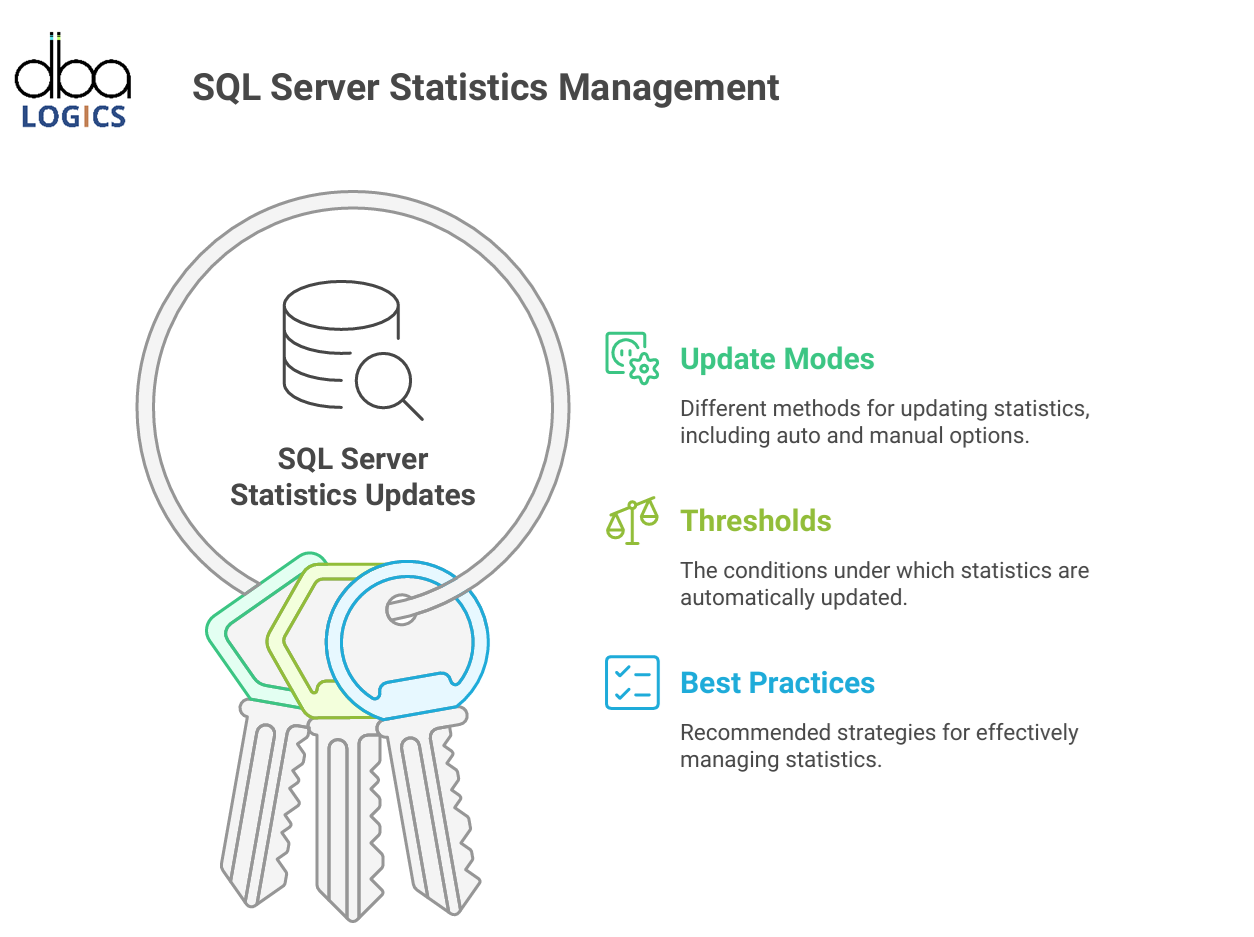

• Significant Differences Between Estimated and Actual Rows: Large discrepancies between estimated and actual row counts can indicate problems with statistics. Update the statistics on the tables involved to improve the accuracy of the execution plan. Important Considerations:

• Performance Overhead: SET STATISTICS PROFILE ON adds overhead to query execution. It should only be used for performance analysis and debugging, not in production environments.

• Permissions: You need the appropriate permissions to execute SET STATISTICS PROFILE ON.

Typically, you need to be a member of the sysadmin server role or have the SHOWPLAN permission. •

Alternative Tools: SQL Server Management Studio (SSMS) provides a graphical interface for viewing execution plans. This can be a more user-friendly way to analyze query performance. The "Display Estimated Execution Plan" and "Display Actual Execution Plan" options in SSMS provide similar functionality.

• SET STATISTICS XML: SET STATISTICS XML ON provides similar information to SET STATISTICS PROFILE ON , but it returns the execution plan in XML format. This can be useful for programmatically analyzing execution plans. Conclusion: SET STATISTICS PROFILE ON is a powerful tool for analyzing query execution details and optimizing performance in SQL Server. By providing detailed information about the execution.

Conclusion:

SET STATISTICS PROFILE ON is a powerful tool for analyzing query execution details and optimizing performance in SQL Server. By providing detailed information about the execution plan and runtime statistics, it allows developers and DBAs to identify bottlenecks and improve query efficiency. While it should be used judiciously due to its performance overhead, it is an invaluable resource for performance tuning and troubleshooting. Understanding how to interpret the output from SET STATISTICS PROFILE ON is essential for anyone working with SQL Server performance optimization. Remember to turn it OFF after use to avoid unnecessary overhead.
